particle board production process

1) Chip preparation section

  Raw material is reduced into qualified chips by the drum chipper, then the chips are transported to the chip bin, and then feed to the knife-ring flaker by which the chips are turned to flakes,then the flake stored in wet flake bin.

2) Drying and sifting section

  The flskes discharged from the wet flake bin are conveyed to the rotary dryer. Qualified core flakes are stored in core flake bin; oversize flakes are send to mill to be re-crushing, and transported to surface flake bin.

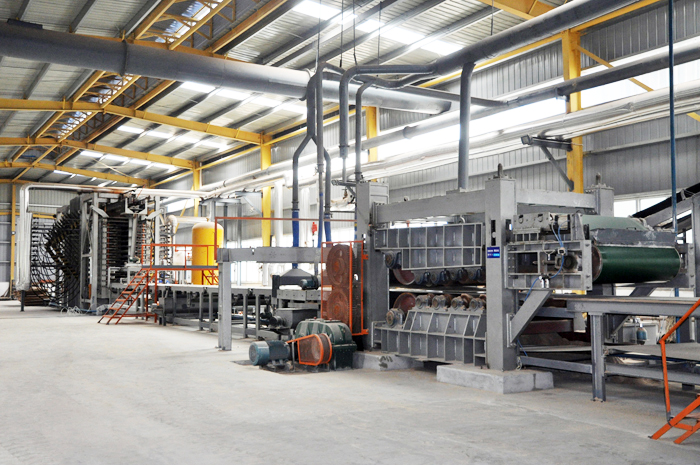

3) Forming and hot-pressing section

  The surface and core flakes are sent into classi-forming machine, and forming on the mat conveyor uniformly. After process of metal remover , pre-press, lengthwise saw, cross saw, accelerate conveyor,scaling conveyor , storing conveyor and loading conveyor,mats are transported to carrier and then to hot pressing. Rough boards after pressing are pushed to unloader via pallet.

4) Cooling and sizing section

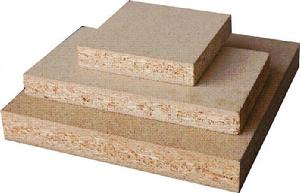

  The rough board is conveyed to star-cooler for cooling ,then the rough board goes through side trimming saw and become a qualified particle-board, stacked on the hydraulic lift.

5) Sanding sectionparticle board production processparticle board production process
